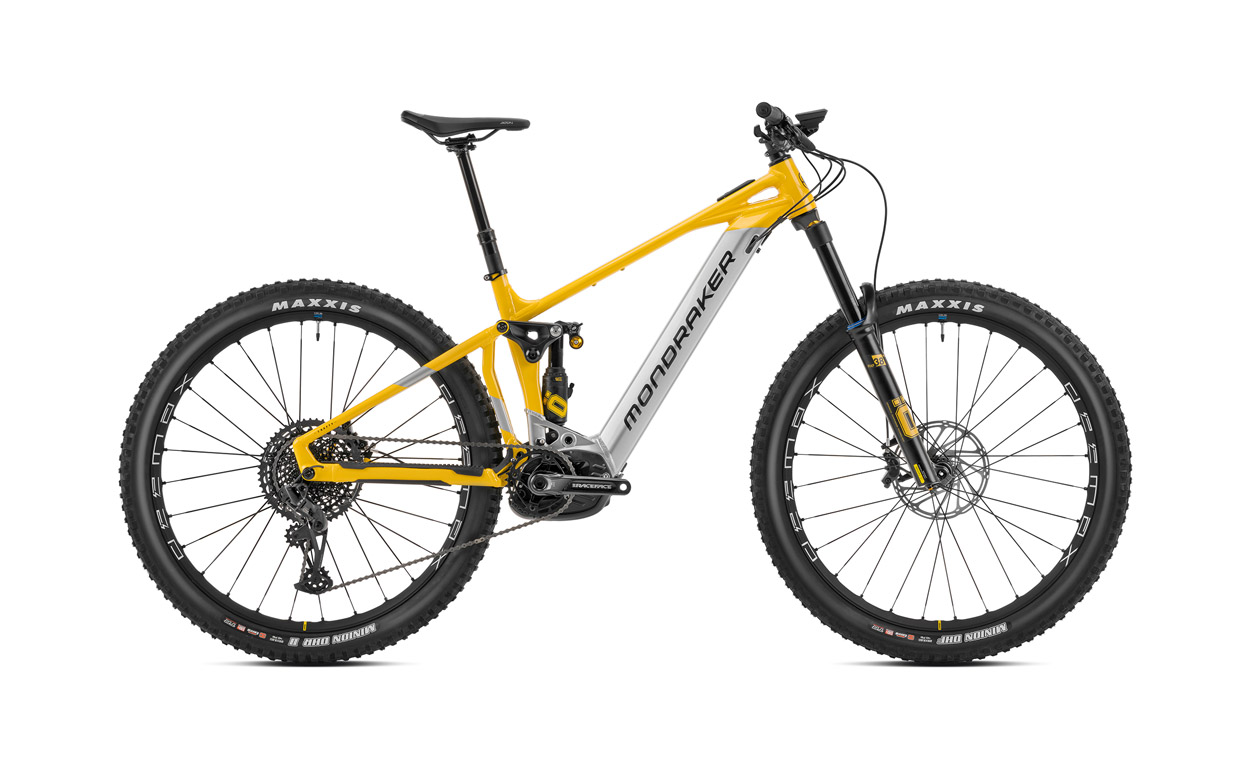

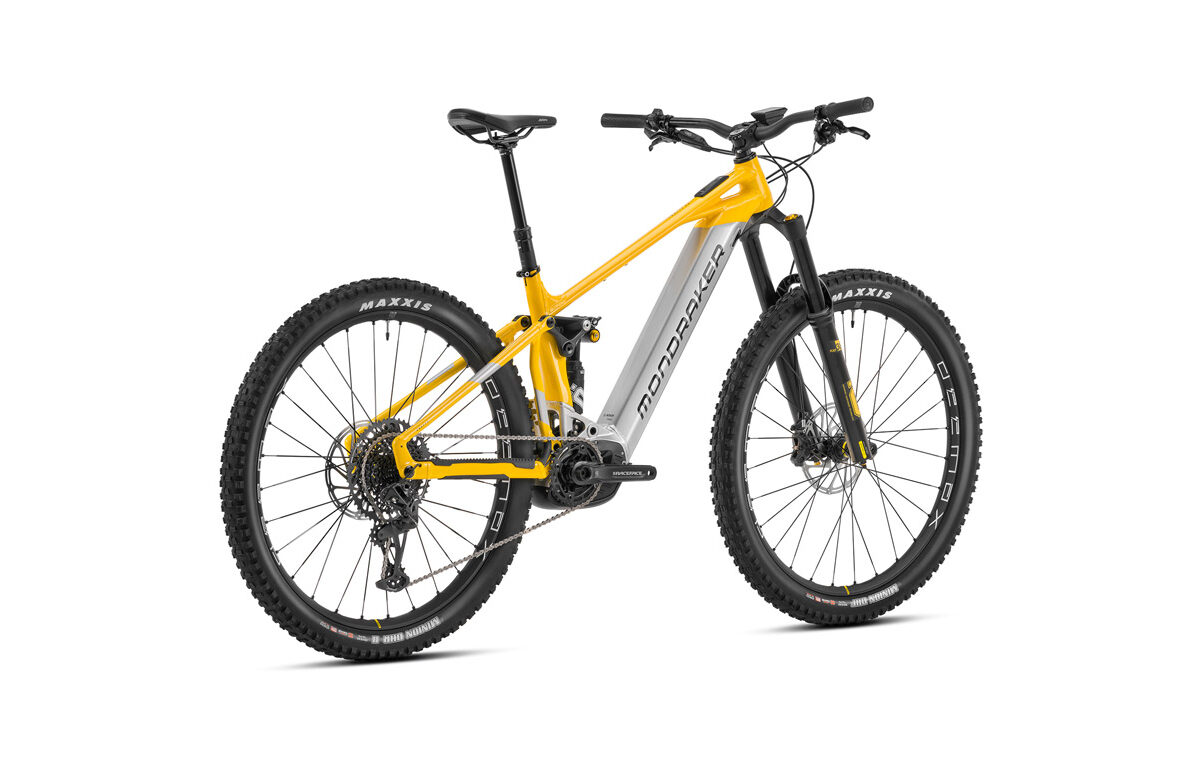

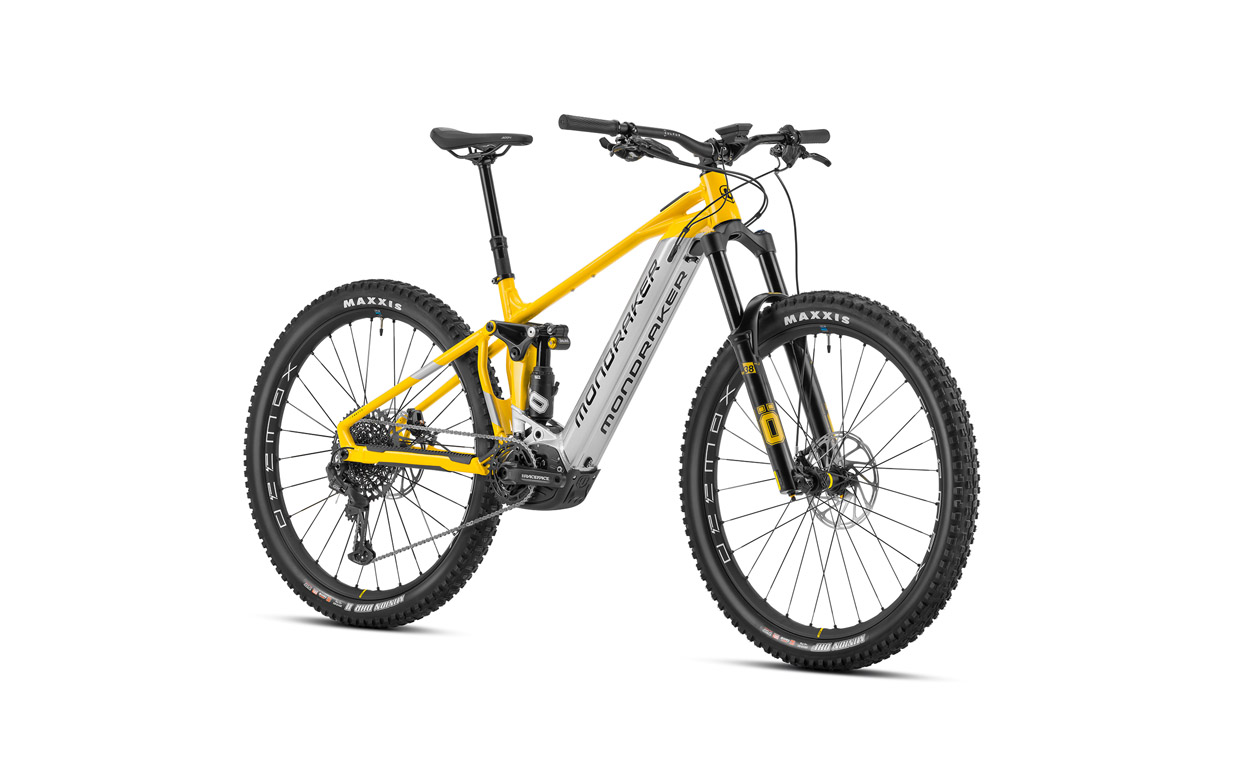

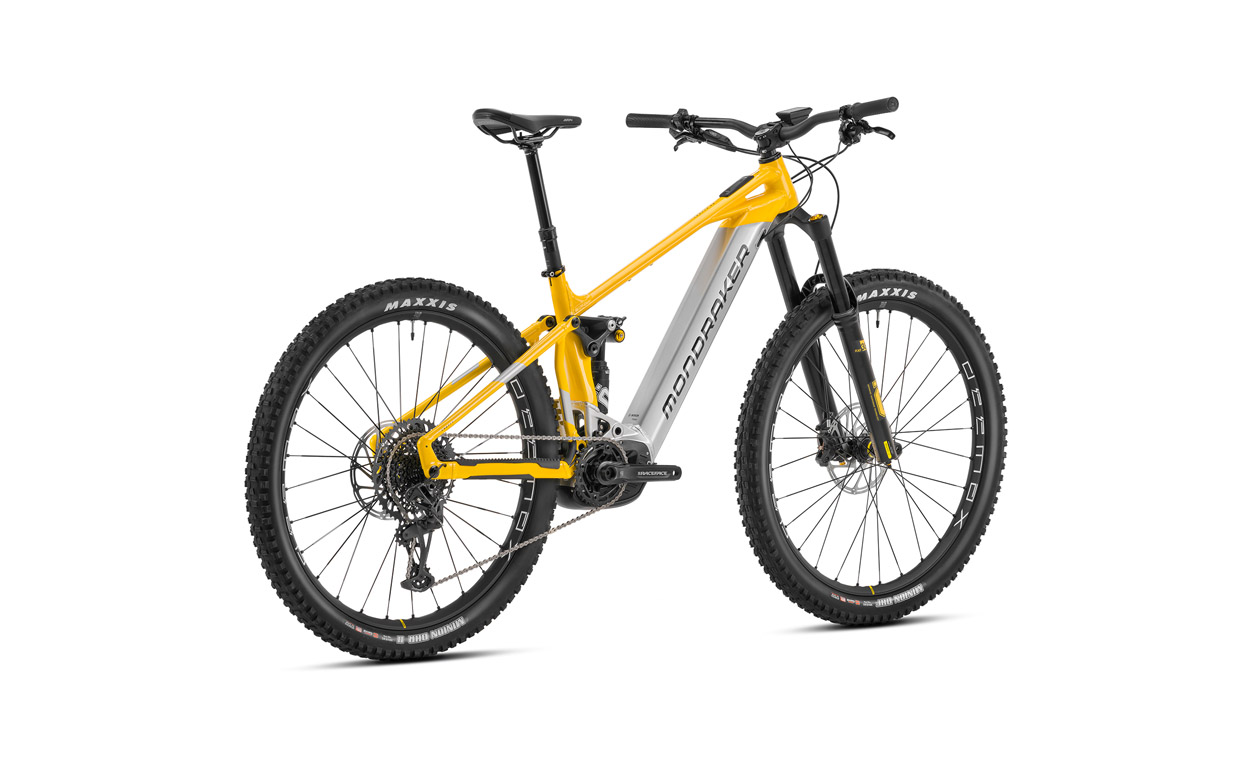

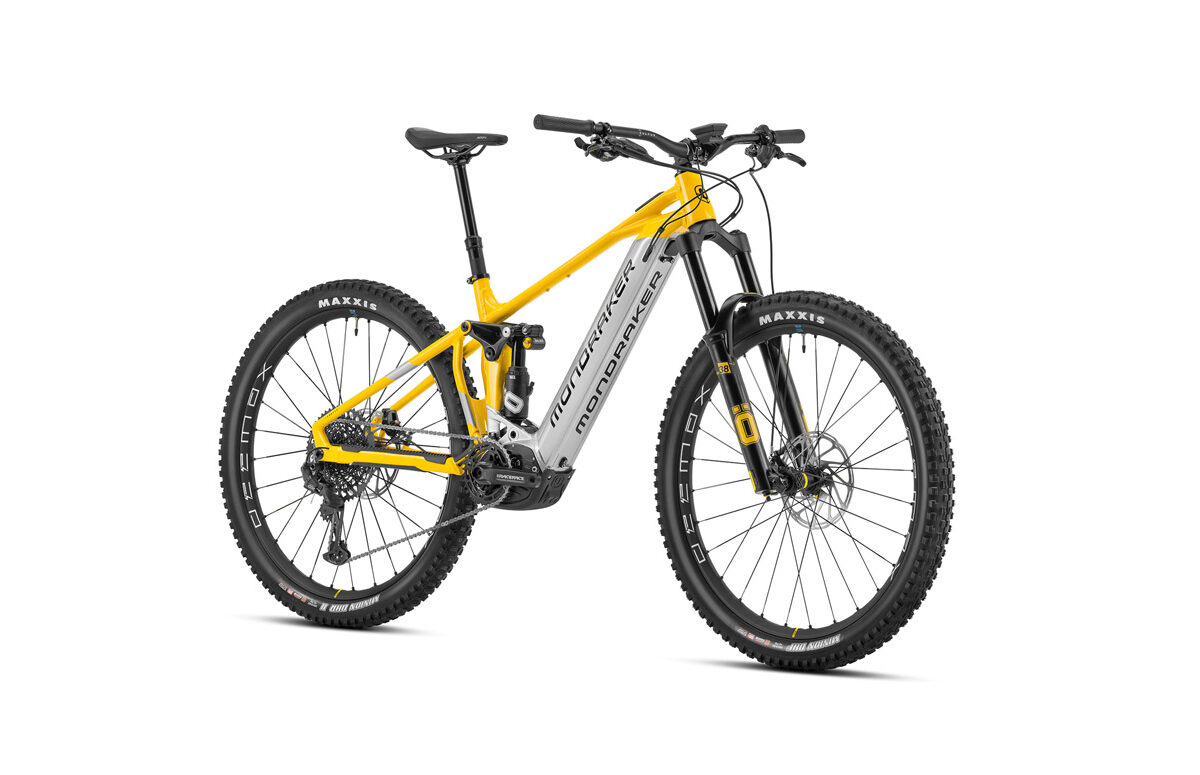

Mondraker Crafty XR – Yellow/Silver

The Mondraker Crafty XR – Yellow/Silver is the perfect electric mountain bike for those who want to take their riding to the next level. With its Crafty 6061 Alloy Stealth Evo frame, 150mm travel, and Ohlins RXF 38 M.2 29 fork, you’ll be able to tackle any terrain with ease. Plus, the Bosch Performance Line CX Cruise motor and Bosch Powertube 750Wh battery will keep you going for miles. With its Boost 12x148mm rear axle, tapered head tube, and integrated dropout speed sensor, you’ll be able to take on any challenge with confidence. Get ready to take your riding to the next level with the Mondraker Crafty XR – Yellow/Silver!

$13,999.00

Specifications

01. FRAME Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery
01A. FRAME Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p
02. FORK Ohlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound,
03. REAR SHOCK Ohlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
04. SHOCK SETTINGS C20 compression, R35 rebound. Volume reducers 12.000 (2xF 1D)
05. HEADSET Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree
06. STEM Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore
07. HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore
08. GRIPS Onoff Desert, 1lock-on, 135mm
09. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm
10. SADDLE FIZIK Terra Aidon X5 145mm
11. FRONT BRAKE Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
12. REAR BRAKE Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
13. BRAKE LEVER Sram Code R, tool-free reach adjust
14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts
15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
16. FRONT TIRE Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO Protection, 120TPI, folding bead
17. REAR TIRE Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO Protection, 120TPI, folding bead
18. CRANKSET Race Face Aeffect ebike, 165mm
19. RINGS Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
20. PEDALS N/A
21. CHAIN Sram NX Eagle, 12s, Powerlock
22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
23. CASSETTE Sram XG-1275, 10-52T, 12s
24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System
25. BATTERY Bosch Powertube 750Wh
26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
27. DERAILLEUR HANGER Mondraker M068
28. SIZES S: 380mm / M: 420mm / L: 450mm / XL: 490mm
