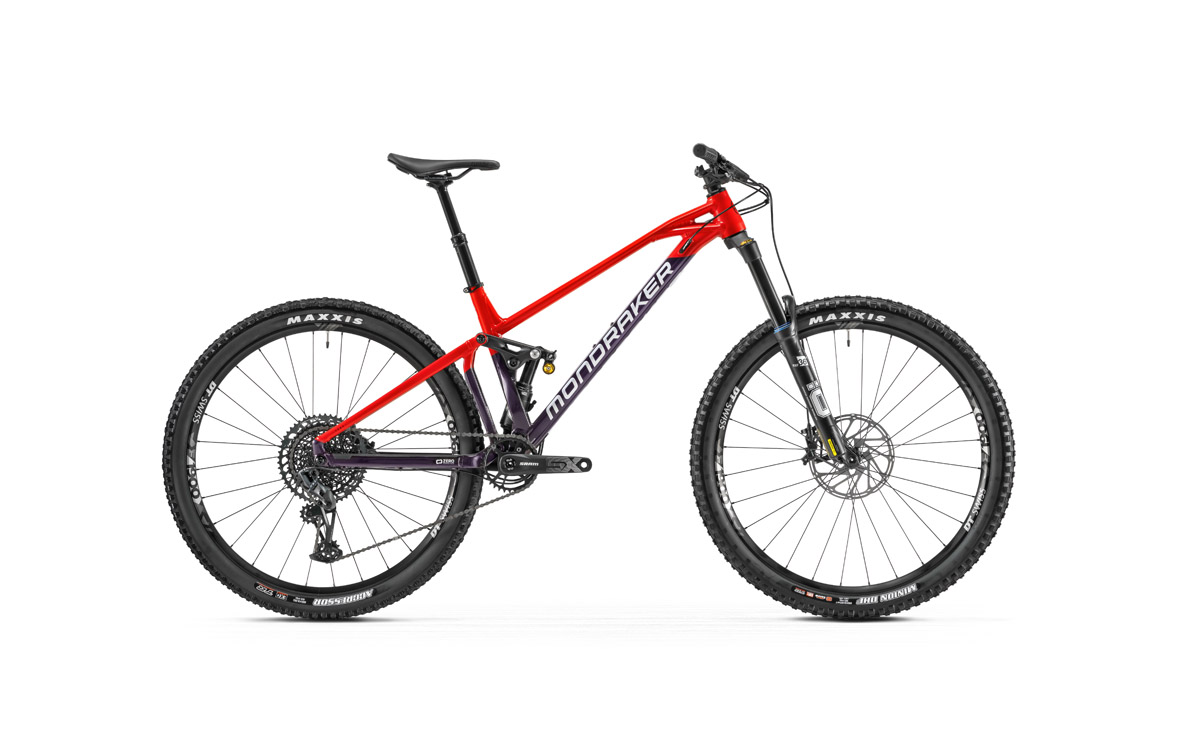

Mondraker Foxy R 29 - Deep Purple/Flame Red

Mondraker Foxy R 29 – Deep Purple/Flame Red

Introducing the Mondraker Foxy R 29 – Deep Purple/Flame Red! This mountain bike is the perfect combination of style and performance. It features a Foxy 29 6061 Alloy Stealth Evo frame with Zero Suspension System, Ohlins TTX Air 205×62.5mm rear shock and Ohlins RXF 36 M.2 29 fork, both with adjustable settings. It also has a Onoff Saturn tapered headset, Onoff Sulfur FG 30mm stem, Onoff Sulfur 1.0 handlebar, Onoff Diamond 1lock-on grips, Onoff Pija dropper internal seatpost, SDG BEL-AIR 3.0 saddle, Sram G2 R brakes, DT Swiss E1900 Spline 29 rims, DT Champion spokes, DT 370 hubs, and Maxxis Minion DHF and Aggressor tires. With its sleek Deep Purple/Flame Red colorway, this bike is sure to turn heads as you

$7,599.00

Specifications

01. FRAME Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System
02. SIZES S: 380mm / M: 420mm / L: 470mm / XL: 510mm
03. REAR SHOCK Ohlins TTX Air 205×62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
04. SHOCK SETTINGS C20 compression, R35 rebound
05. FORK Ohlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound,
06. HEADSET Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreesx45 degrees, bottom 51.9x40x8x45 degreesx45
07. STEM Onoff Sulfur FG 30mm 0 degrees, 6061 forged alloy, 31.8mm barbore
08. HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degrees backsweep, 5 degrees upsweep, 31.8mm barbore
09. GRIPS Onoff Diamond, 1lock-on, 135mm
10. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
11. SADDLE SDG BEL-AIR 3.0, LPU foam, steel rails
12. FRONT BRAKE Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
13. REAR BRAKE Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
14. BRAKE LEVER Sram G2 R, SwingLink, tool-free reach adjust
15. RIMS DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
16. SPOKES DT Champion, straightpull
17. FRONT HUB DT 370, Boost 15x110mm, IS 6 bolts
18. REAR HUB DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts
19. FRONT TYRE Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO protection, 120TPI, folding bead
20. REAR TYRE Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
21. CRANKSET Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
22. CHAINRING 32T, CNC-machined alloy, X-SYNC 2
23. BOTTOM BRACKET Sram DUB BSA, sealed bearings, 73mm
24. PEDALS –
25. CHAIN Sram SX Eagle, 12s, Powerlock
26. FRONT DERAILLEUR –
27. REAR DERAILLEUR Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
28. SHIFT LEVERS Sram Trigger SX Eagle, 12s, X-Actuation 1:1
29. CASSETTE Sram XG-1230, 11-50T, 12s
30. HANGER M068
